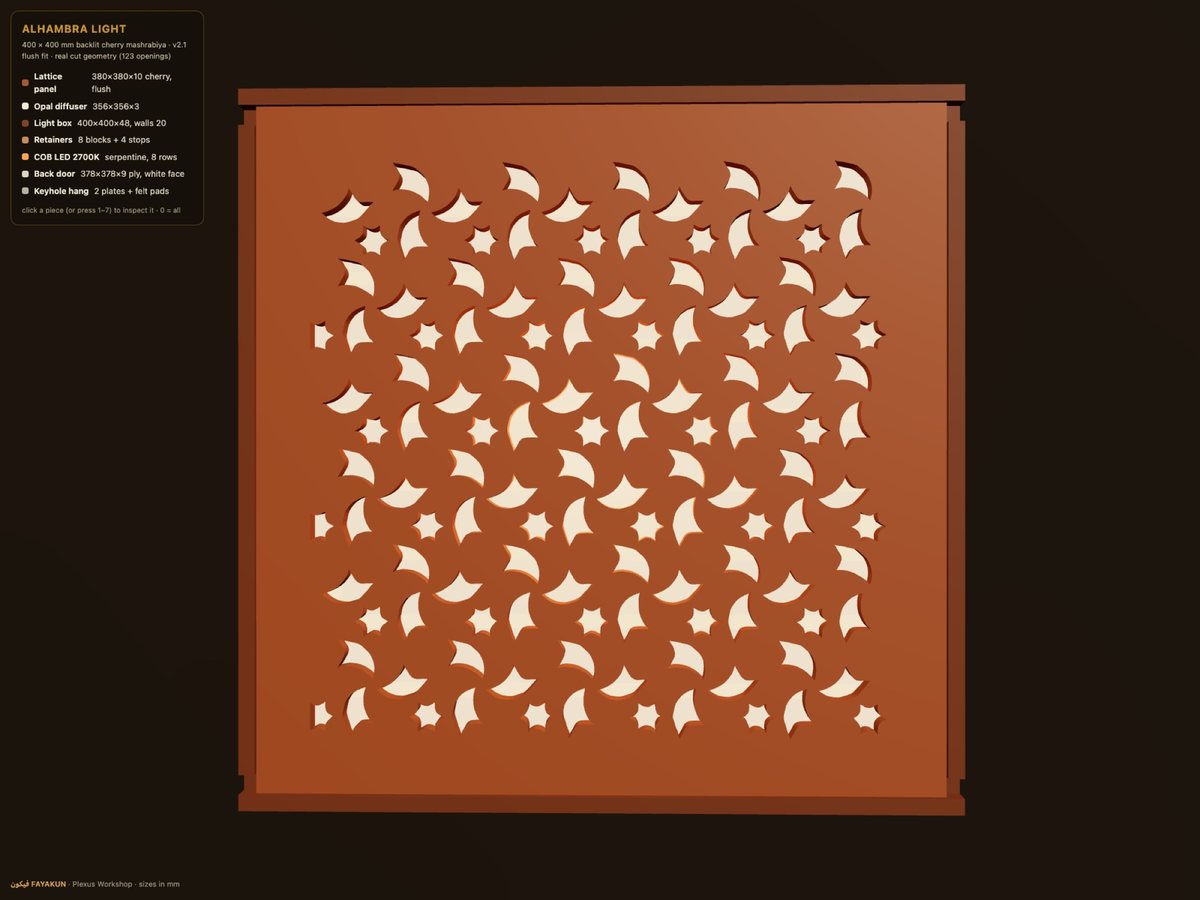

Alhambra light — cut panel
Solid cherry · 380 × 380 mm
123 openings cut with a Ø3 mm bit, down to a 4.8 mm minimum wood wall. The panel stays one connected piece — nothing drops out of the field.
On-demand fabrication
CNC, laser & milling, on your terms.
Bring your own files or start from a ready design. Cut, engrave or turn it in wood and more — a workshop engineer sends you a quote. No minimums, no commitment to start.
Design files
Just need the file? Send us an image.
Send a photo, a sketch, a render or a drawing. It comes back as a file a machine can actually run — straight lines truly straight, circles truly circles, arcs truly arcs. Geometry drawn to machine standard, not a trace of your pixels. Anything in 3D is re-rendered and checked against your own image before it ships.
Delivered by WhatsApp or email, usually within 48 hours — anywhere. Want it made as well? We can cut it here in the workshop in Amman.
Start a full orderDXF
JD 15per file
For laser & CNC cutting
A flat 2D cutting file — closed polylines, true arcs, in millimetres at real size. Load it and cut.
STL
JD 35per file
For 3D carving & printing
A 3D model built from a clear image — relief or solid — ready for a CNC carve or a 3D printer.
ENGINEERED
fromJD 280
Solved from an image or a brief
When there is no model to trace — a relief from a single shaded render, a piece from written dimensions. The surface is solved, not guessed, then proven by re-rendering it against your own image. Watertight, checked numerically, and delivered with the machining notes your shop needs: maximum wall angle and tightest concave radius, so the right cutter goes in first time.
Final price by size and complexity.
What you get, every time
True geometry
Straight is straight and a circle is a circle — measured to the micron and reported, not eyeballed.
Verified against your image
3D work is re-rendered and compared to what you sent, so the shape you approve is the shape you get.
Machining notes included
Maximum wall angle and tightest concave radius, so your machinist picks the right cutter before the job starts.
How it works
01
Send your idea
Upload your files (DXF, SVG, PDF, STEP…) or pick a ready design, then set material, thickness and quantity.
02
We quote it
An engineer reviews your order and sends a price and lead time — usually within 24 hours.
03
We make it
Approve the quote and we cut, finish and hand it over — tracked from your private link.
What you can make
Examples from the workshop
Alhambra light — backlit
Cherry · 30 mm border, 320 mm field
The pattern was reverse-engineered from the client's own Alhambra mosaic into true p3 geometry — a six-point star and a three-comma pinwheel per cell.

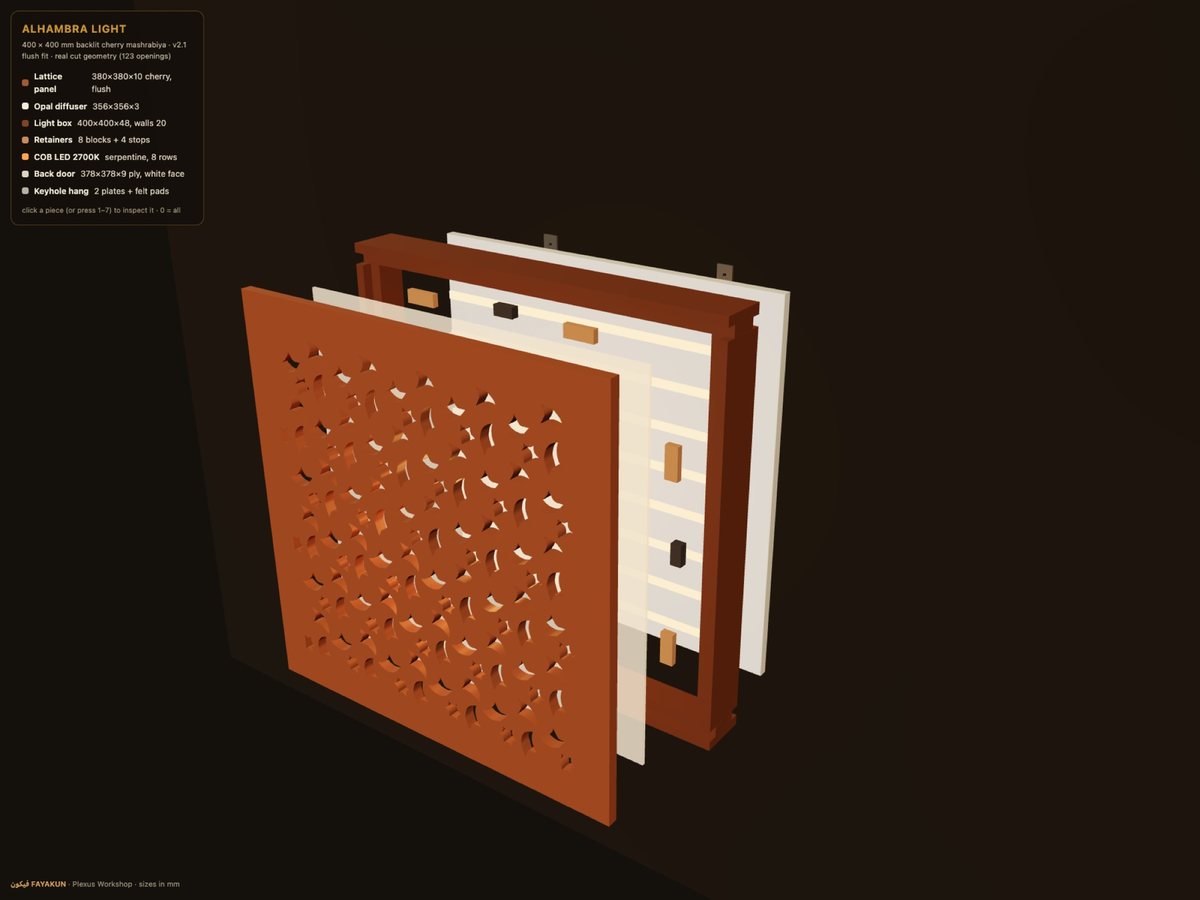

Alhambra light — the stack
Cherry, diffuser, LED box
Cut panel, diffuser and lightbox as separate parts. Every layer is drawn before anything is cut, so the assembly is checked on screen first.

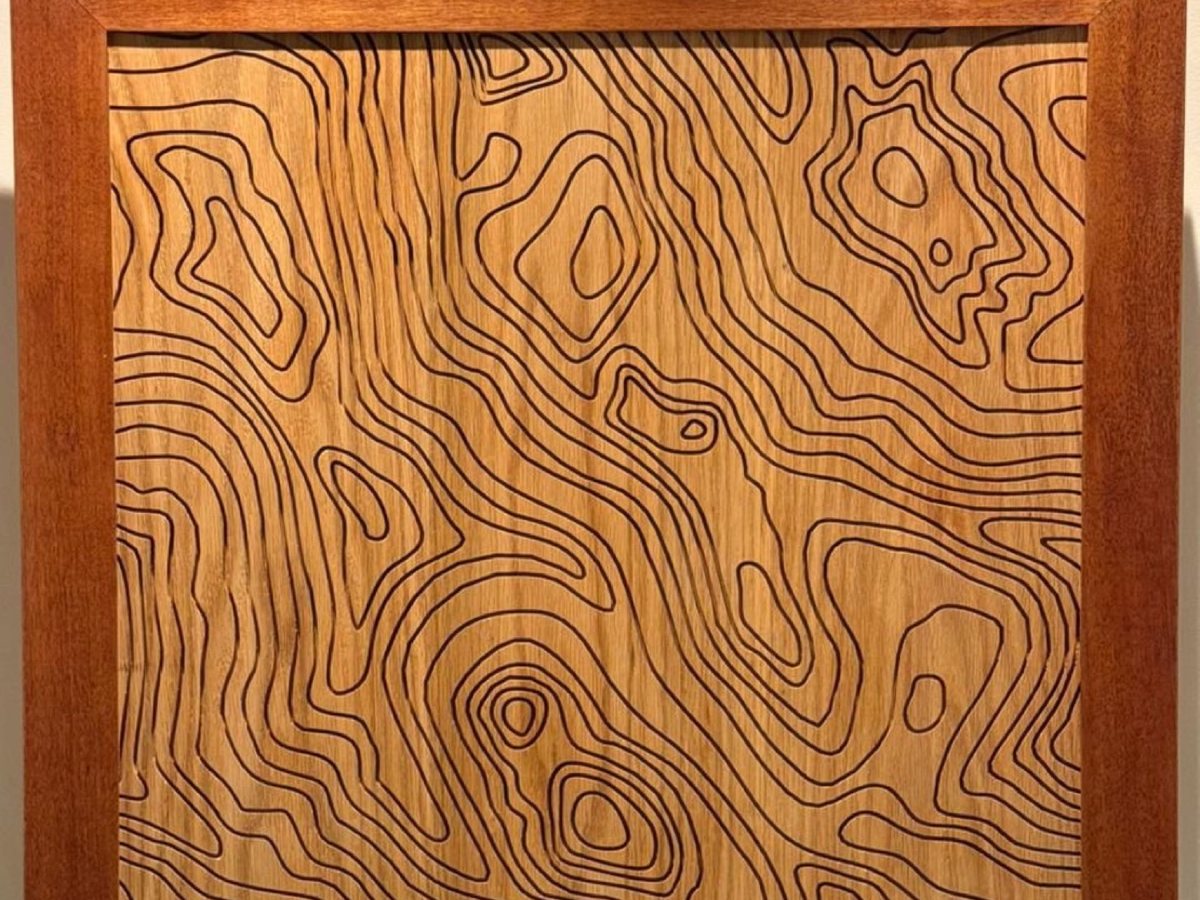

Topographic oak panel
Oak, framed
Contour lines engraved into solid oak — hundreds of closed curves, every one cut at a constant depth so the terrain reads by line alone.

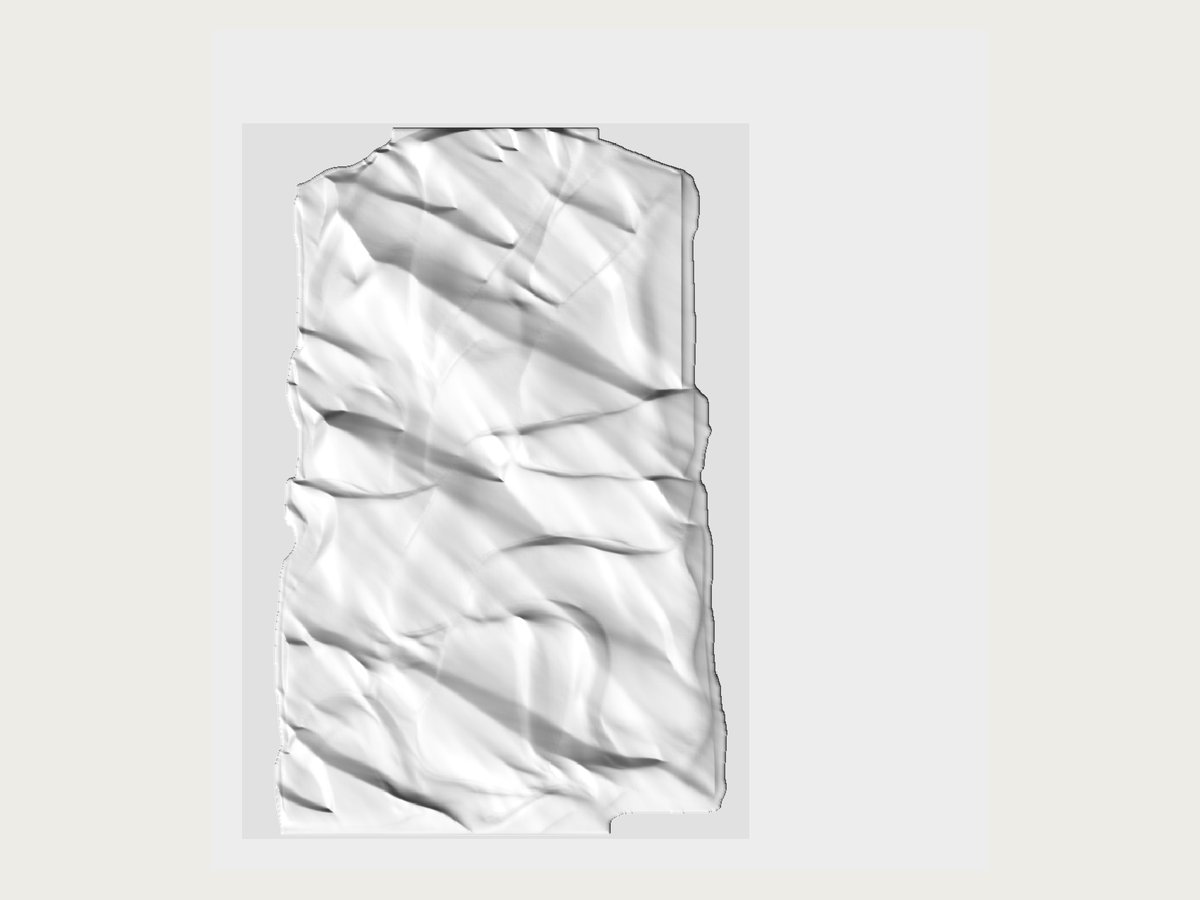

Draped fabric wall relief
1700 × 2400 × 100 mm · 70 mm relief
A watertight solid — 0 open edges, 0 degenerate triangles. Max wall angle 71.6°, but 99 % of the surface sits under 42.1°, so a Ø10 mm ball nose reaches every crease.

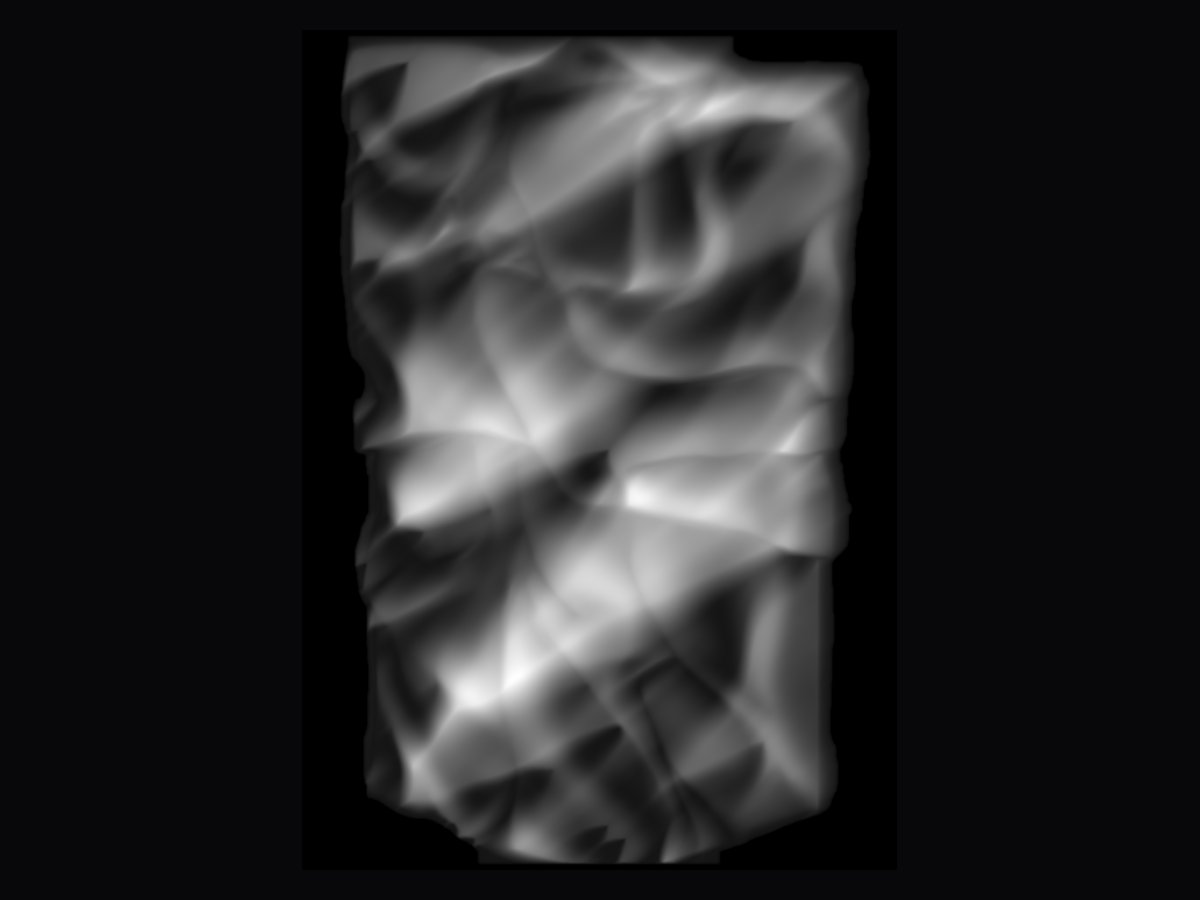

The same relief, as a heightmap
16-bit greyscale · 1 px = 1 mm
Black is the plate face, white is 70 mm. ArtCAM and Aspire import this directly as a relief — lighter than the STL, identical result.

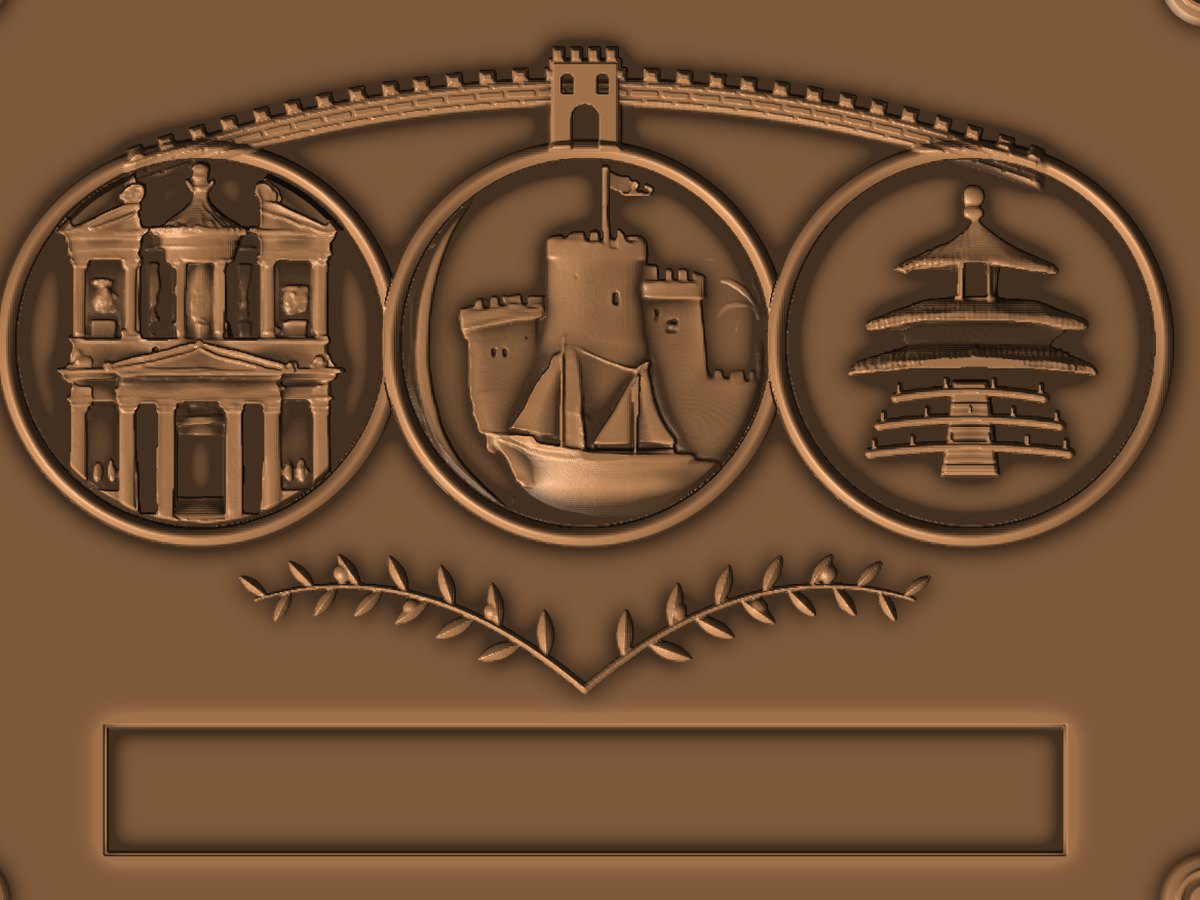

Commemorative plaque
Walnut · 300 × 200 × 25 mm
8 mm of carving on a 17 mm back, flat on Z=0 and watertight — imports straight into Aspire with no repair. The finest details run ~1 mm, so it needs a ≤1 mm detail bit.

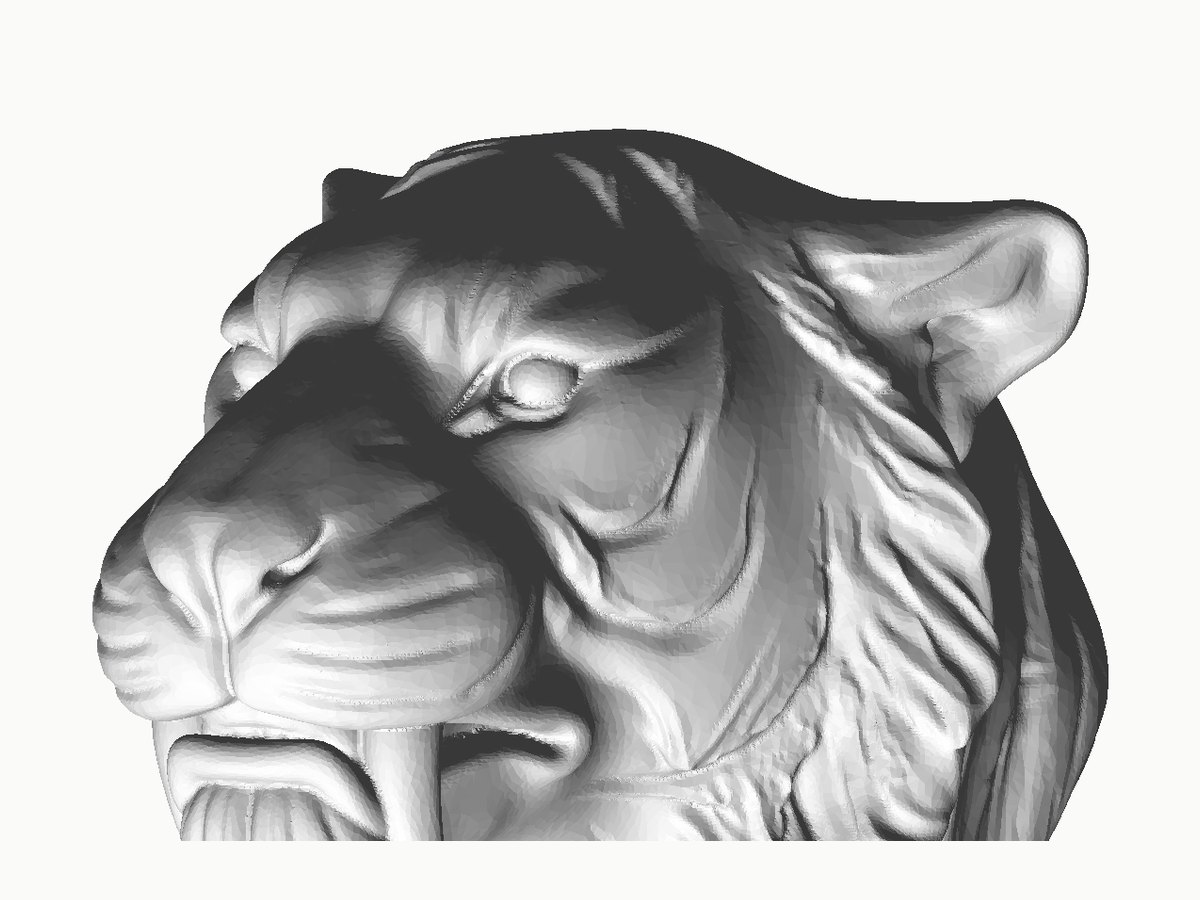

Tiger staff head
4-axis · 597 mm model
A sculpted cane head solved as a rotary part — the blank diameter and the cutter's reach are checked against the model before a single pass is written.

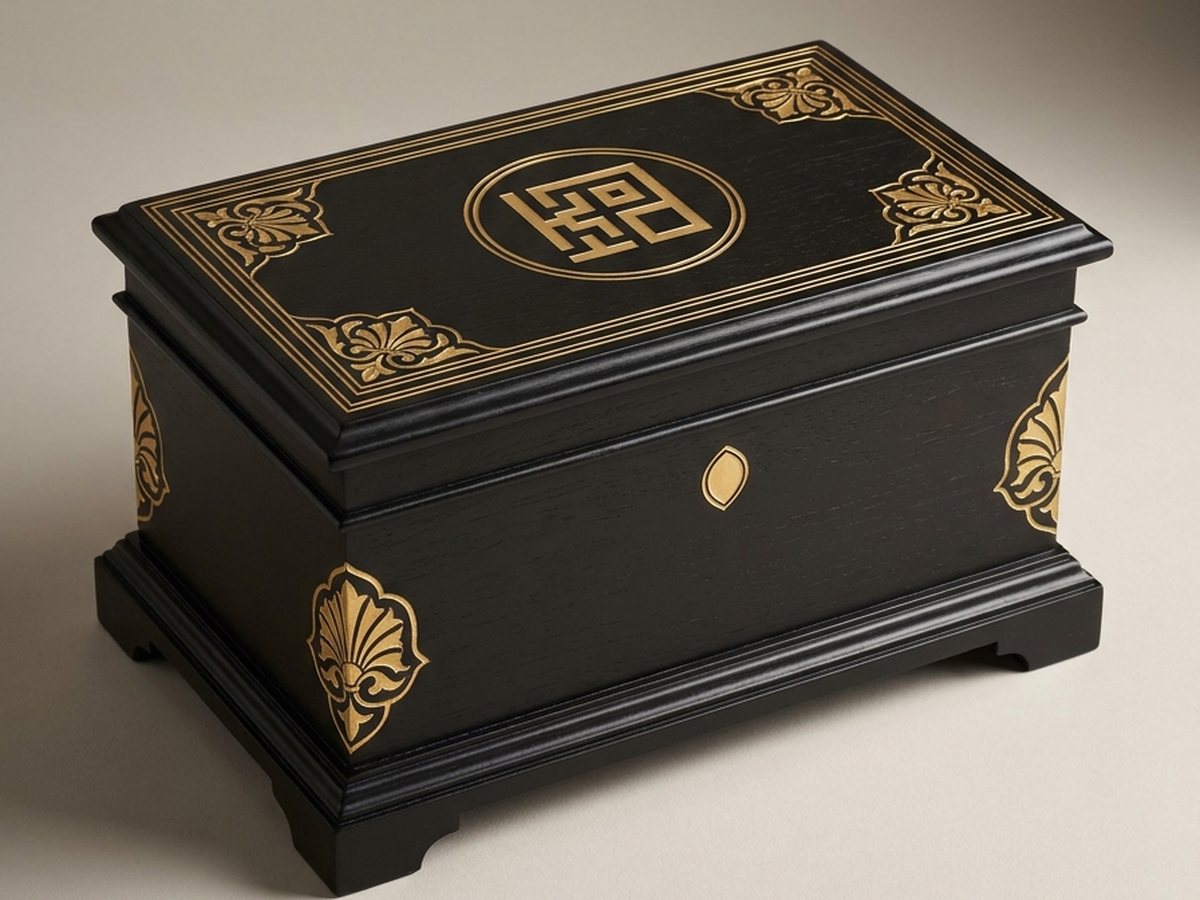

Black heritage casket
Lacquer over hardwood, gilt inlay
Engraved corner fans and a centred medallion. Every repeated motif is one master instance placed and mirrored — never four separate traces — so the four corners are identical.

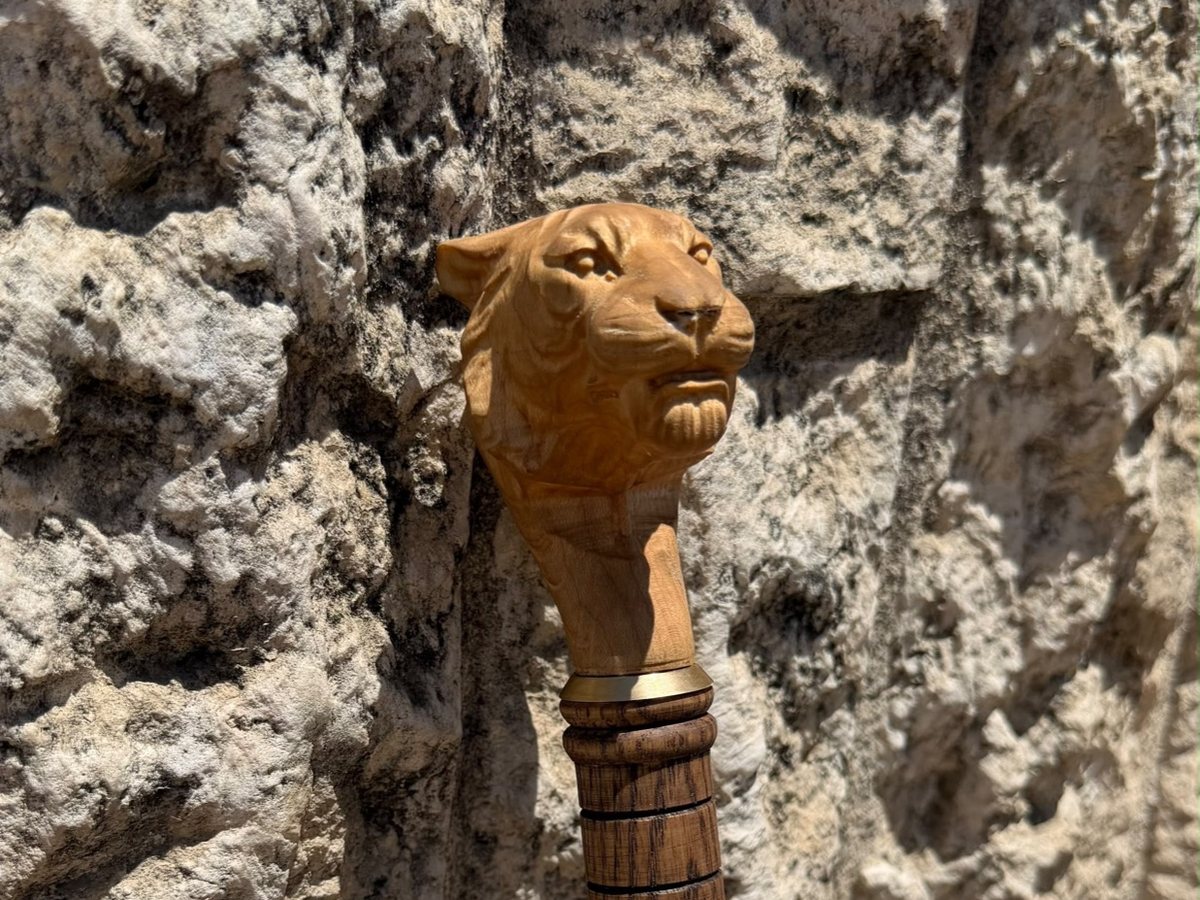

Lion-head cane
Sculpted head, 50–60 × 60–70 mm
A one-off commission. The head is sculpted and hand-finished, then joined to a turned shaft with a collar that hides the joint line.

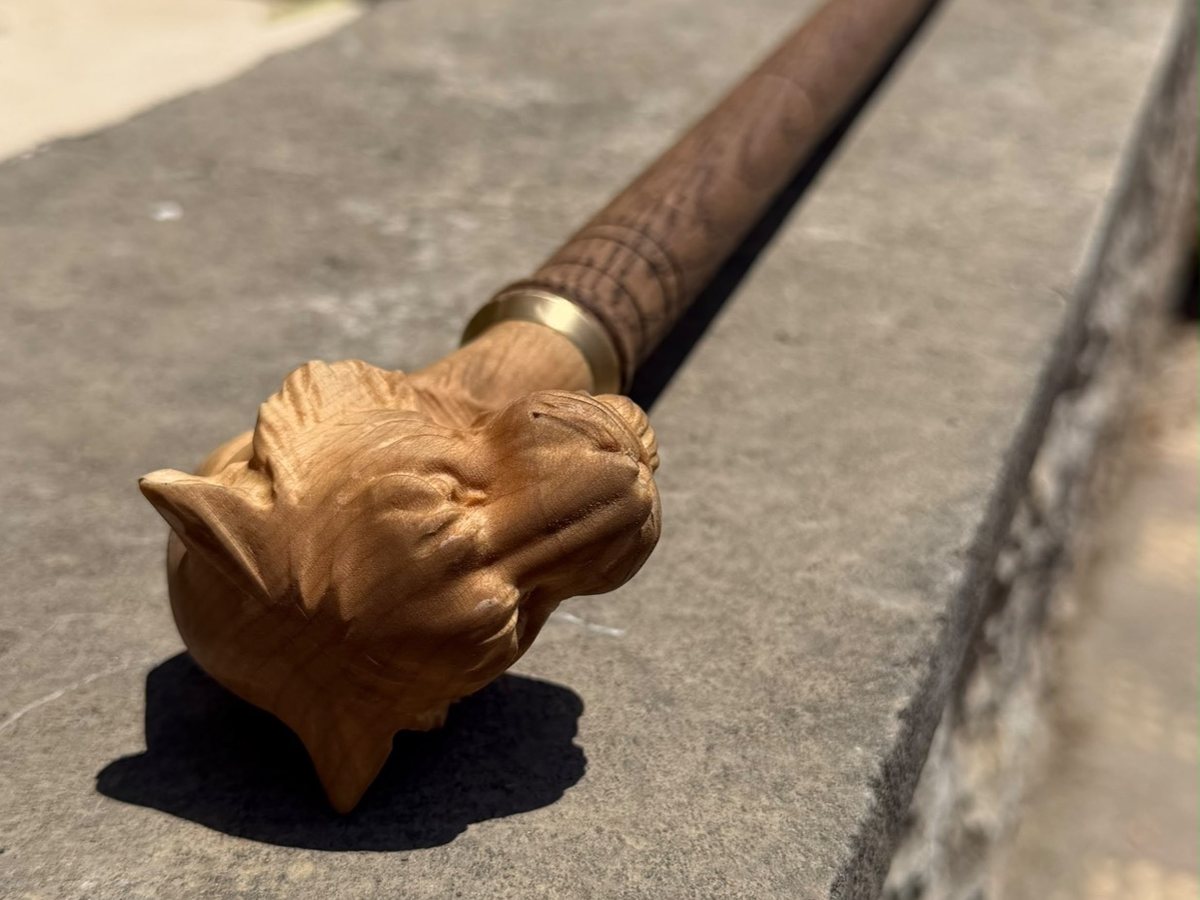

Lion cane — the shaft
Solid oak, hand-balanced
Oak is the best cane timber available in Jordan. The shaft is turned, shaped and balanced by hand so the weight sits under the palm, not out at the head.

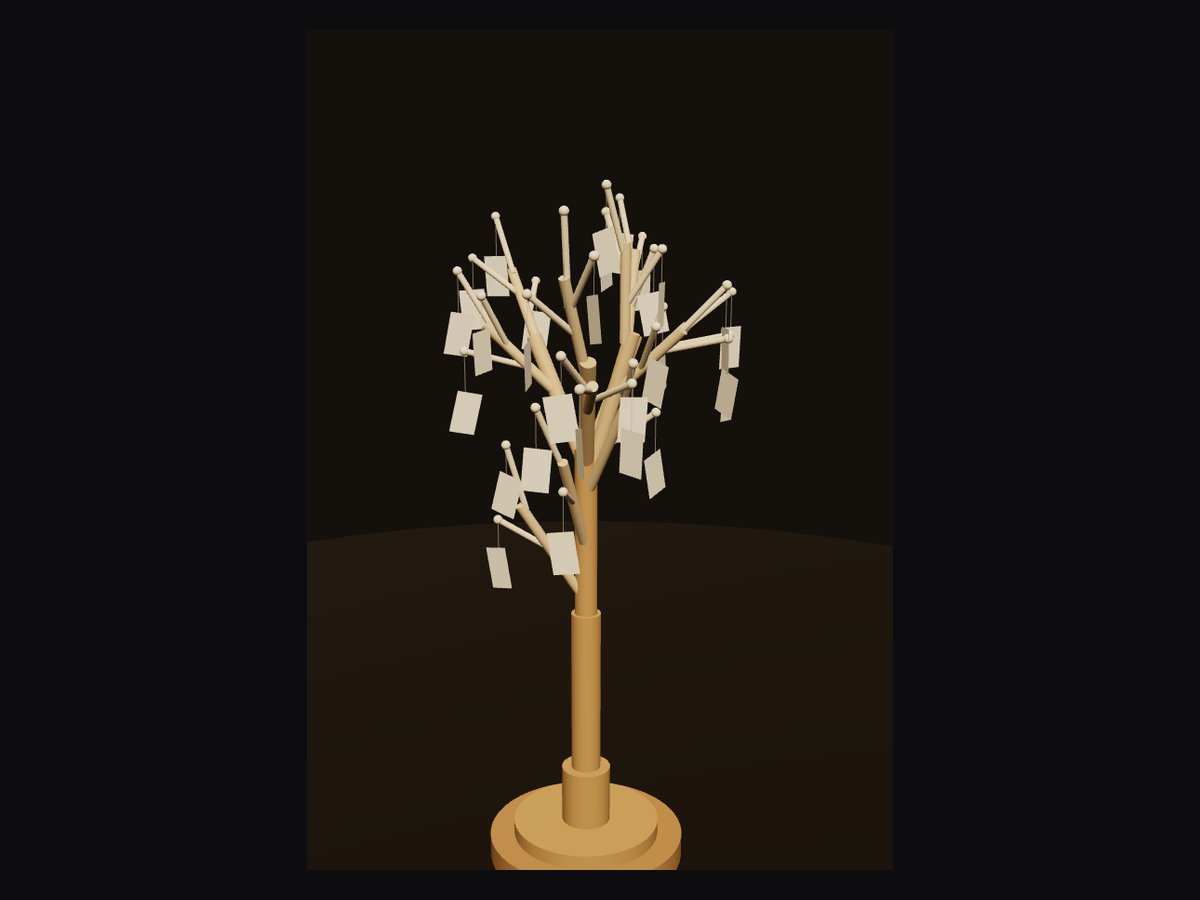

The Dowel Tree
Beech · 1300 mm tall
48 members, 47 sockets, 30 turned bead tips — and only two angles in the whole piece, 32° and 16°. Every joint was checked for drill reach before a hole was made.

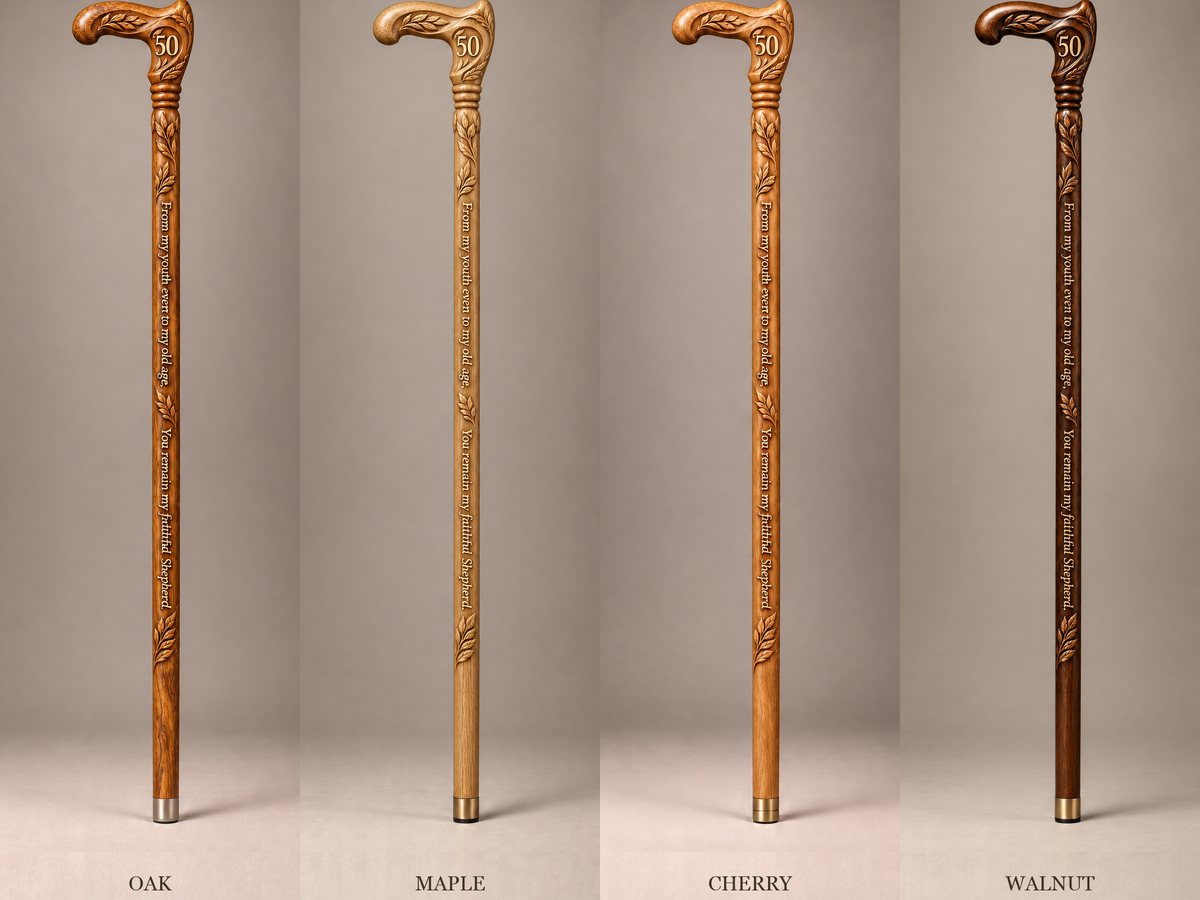

Derby cane — four woods
Oak · maple · cherry · walnut
The same turned profile in four timbers, so the choice is made against real grain and colour rather than a word on a page.
Ready designs
Order a proven design
Pick one of our ready designs — like lids and trays — and we tailor the material and size to you. Price quoted per order.

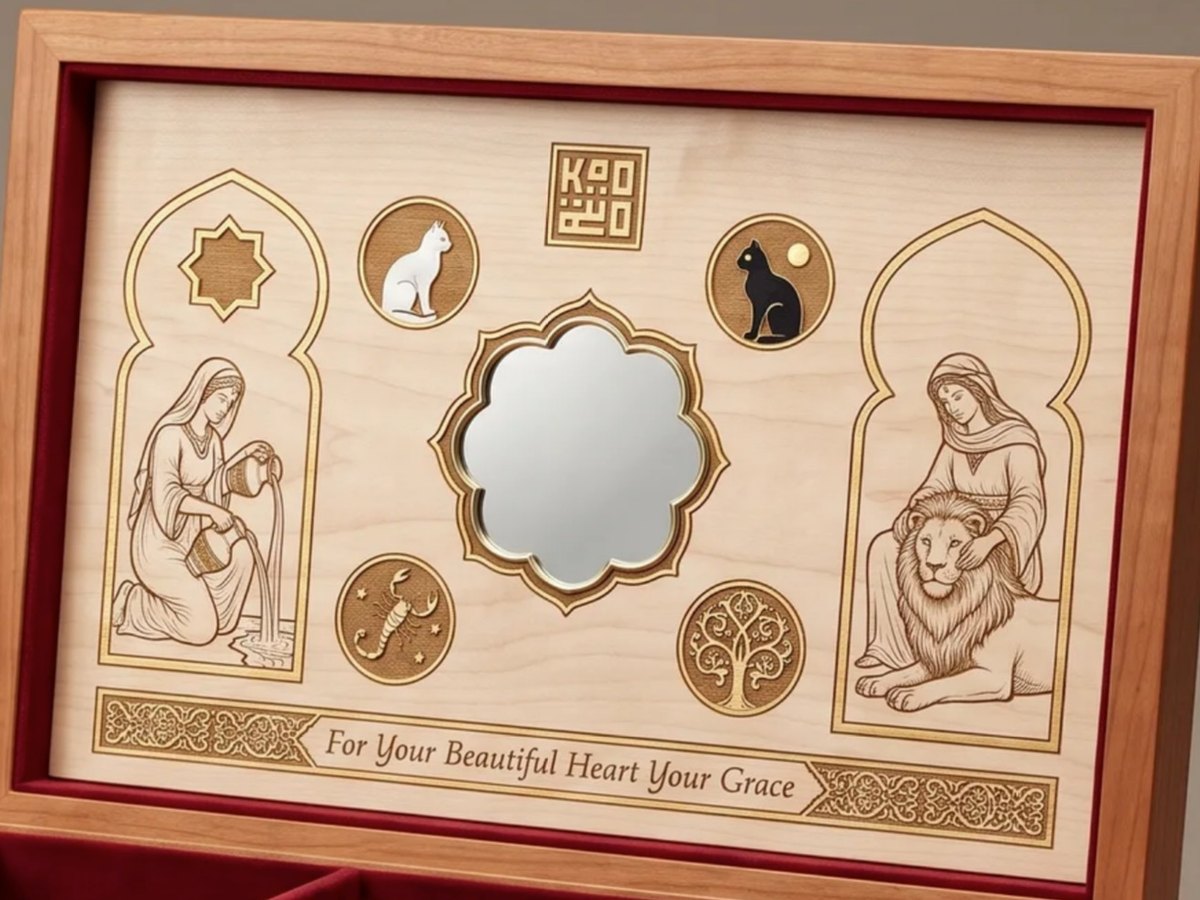

Engraved box lid
An engraved lid panel, cut and inlaid to your own artwork — choose the wood, the size and what goes on it.
Order this
